Winsome
Round post with Vertical Pickets
The Winsome Railing design system by Rinox Engineering is a stunning choice
for anyone who wants to enhance the beauty of their glass railing with
spiders. This system features a round post assembly that provides strength
and durability, as well as a sleek and modern aesthetic look. You can choose
from a variety of post, top rail and handrail and mounting options to create
your own distinct design. Winsome Railing design system is a part of the
RINOX brand, which is a global industry standard for premium stainless
steel railing systems.

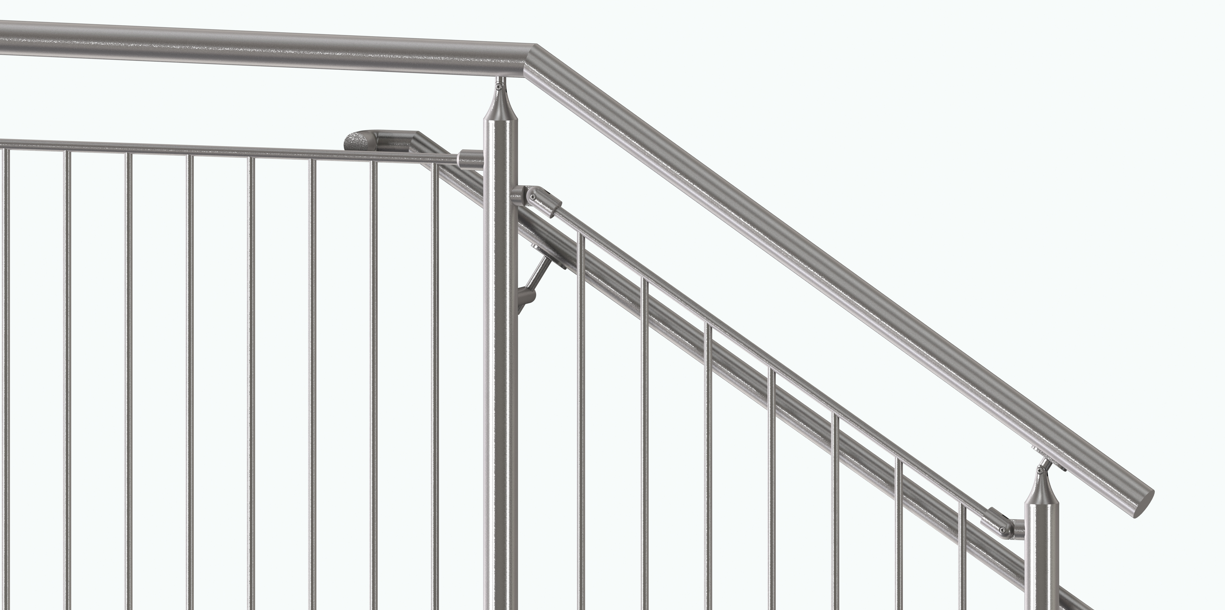

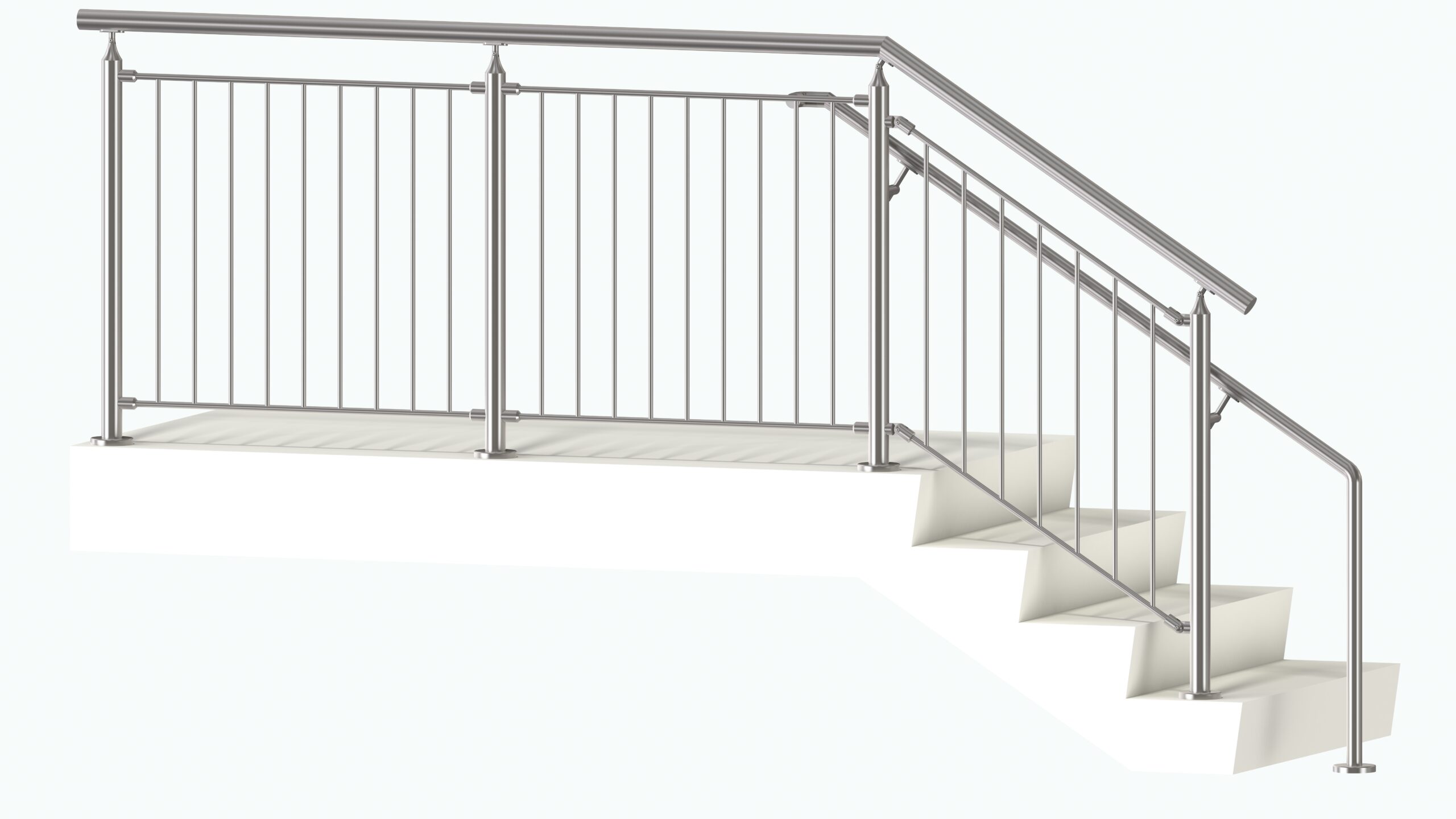

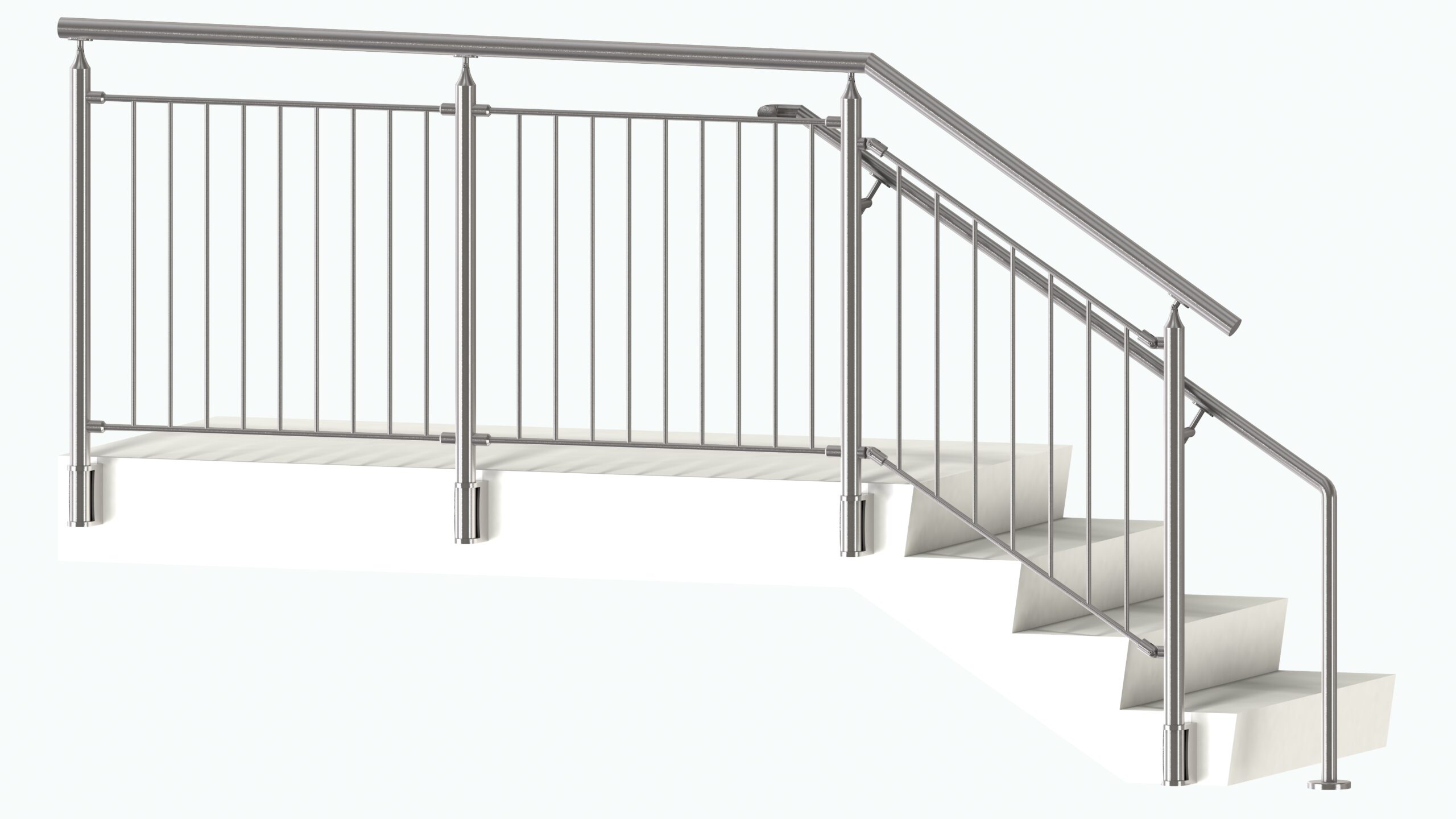

This design is a classic and traditional choice for those who want to have a sturdy and secure
railing. The round posts are connected by vertical pickets that are evenly spaced and aligned.
The pickets are made of strong and durable materials and can withstand various weather
conditions. The vertical pickets also provide a sense of privacy and safety.
| TECHNICAL DATA | TYPE/SHAPE | STANDARD SPACING / SIZE IN mm (Inch) |
|---|---|---|
| Post | Round | 1220 mm (4’) On Center - Standard |
| Infill option | Vertical Pickets | Dia. 10 - 16 mm (13/32” - 5/8”) hollow or solid |
| Top Rail / Hand Rail | Round or Square Tube | Dia. 48.3 mm (1-29/32") / 38.1 mm (1-1/2") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
| Top Rail / Hand Rail (U-tube) | Round or Square U Tube | Dia. 42.4 mm (1-21/32") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
Additional information
| Infill Option | Vertical Pickets |
|---|---|
| Mounting Options | Top, Side, Inclined, Core |
| Model Name | Winsome |
| Post Type | Round |
| Top Rail Attachments | Round Tube, Round U Cap, Square Tube, Square U Cap |
