Winsome

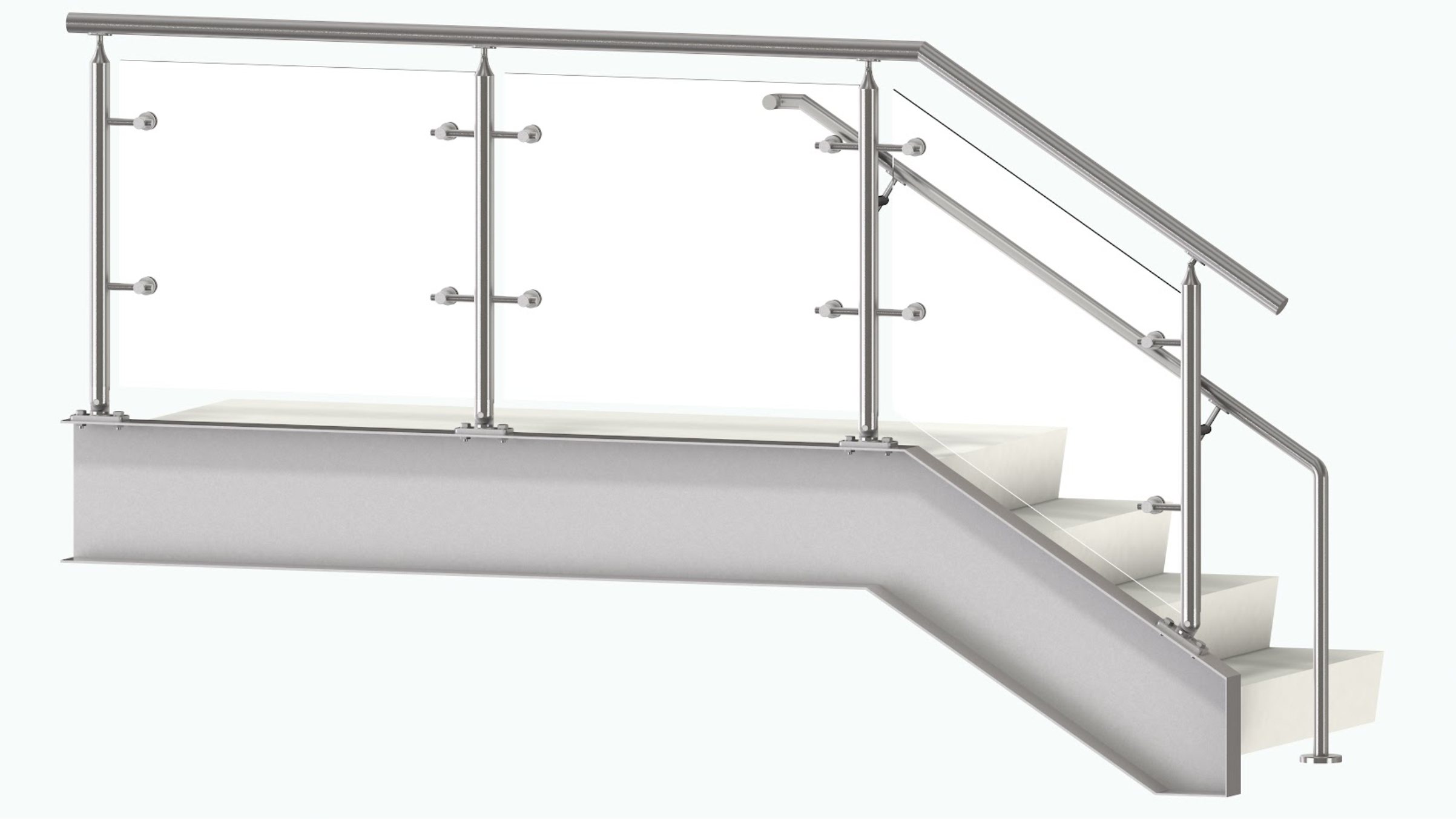

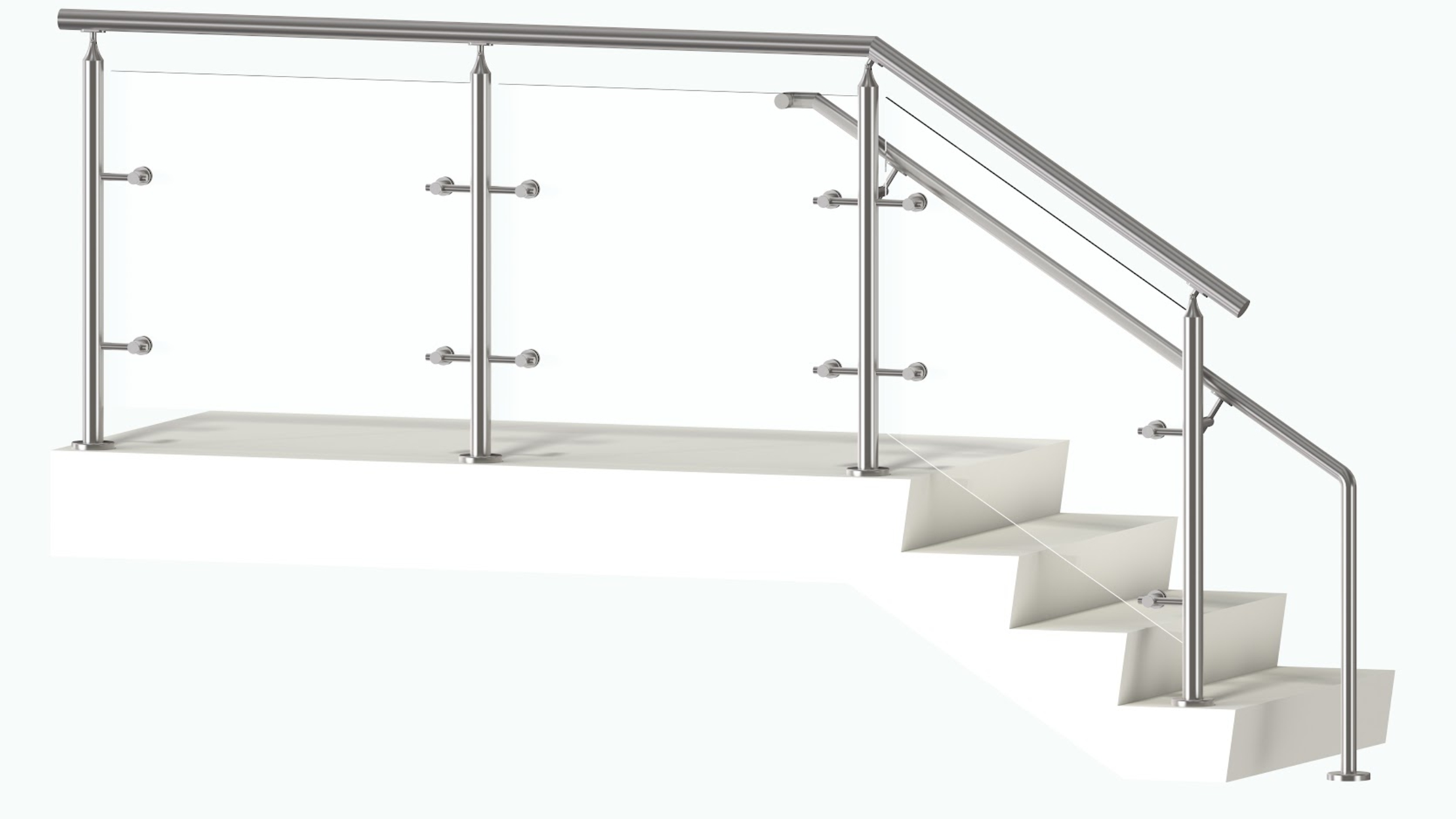

Round post with Glass spider fittings
The Winsome Railing design system by Rinox Engineering is a stunning choice
for anyone who wants to enhance the beauty of their glass railing with
spiders. This system features a round post assembly that provides strength
and durability, as well as a sleek and modern aesthetic look. You can choose
from a variety of post, top rail and handrail and mounting options to create
your own distinct design. Winsome Railing design system is a part of the
RINOX brand, which is a global industry standard for premium stainless
steel railing systems.
This design is similar to the previous one, but with a more sophisticated and elegant

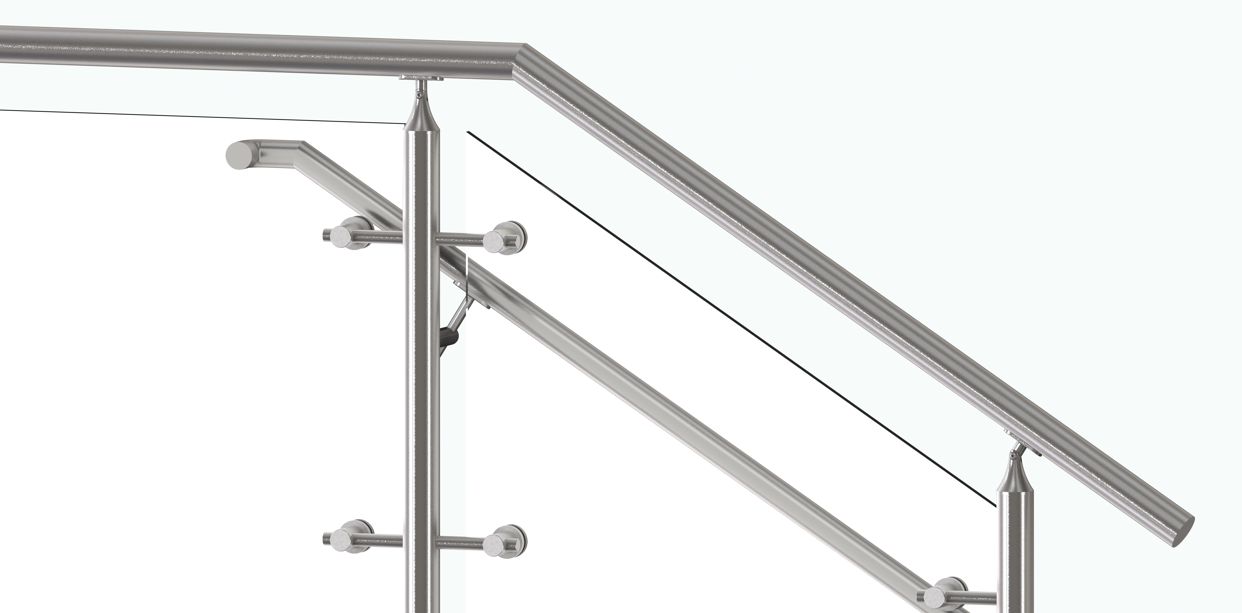

touch. The glass panels are supported by spider fittings that are attached to the round
posts. The spider fittings are made of durable and corrosion-resistant materials and
can hold the glass panels at various angles. The top mount type also creates a smooth
and open look.
| TECHNICAL DATA | TYPE/SHAPE | STANDARD SPACING / SIZE IN mm (Inch) |
|---|---|---|
| Post | Round | 1220 mm (4’) On Center - Standard |
| Infill option | Glass with spider | 10.76 - 12.76 mm (3/8” - 9/16”) laminated glass |
| Top Rail / Hand Rail | Round or Square Tube | Dia. 48.3 mm (1-29/32") / 38.1 mm (1-1/2") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
| Top Rail / Hand Rail (U-tube) | Round or Square U Tube | Dia. 42.4 mm (1-21/32") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
Additional information
| Infill Option | Glass |
|---|---|
| Model Name | Winsome |
| Post Type | Round |

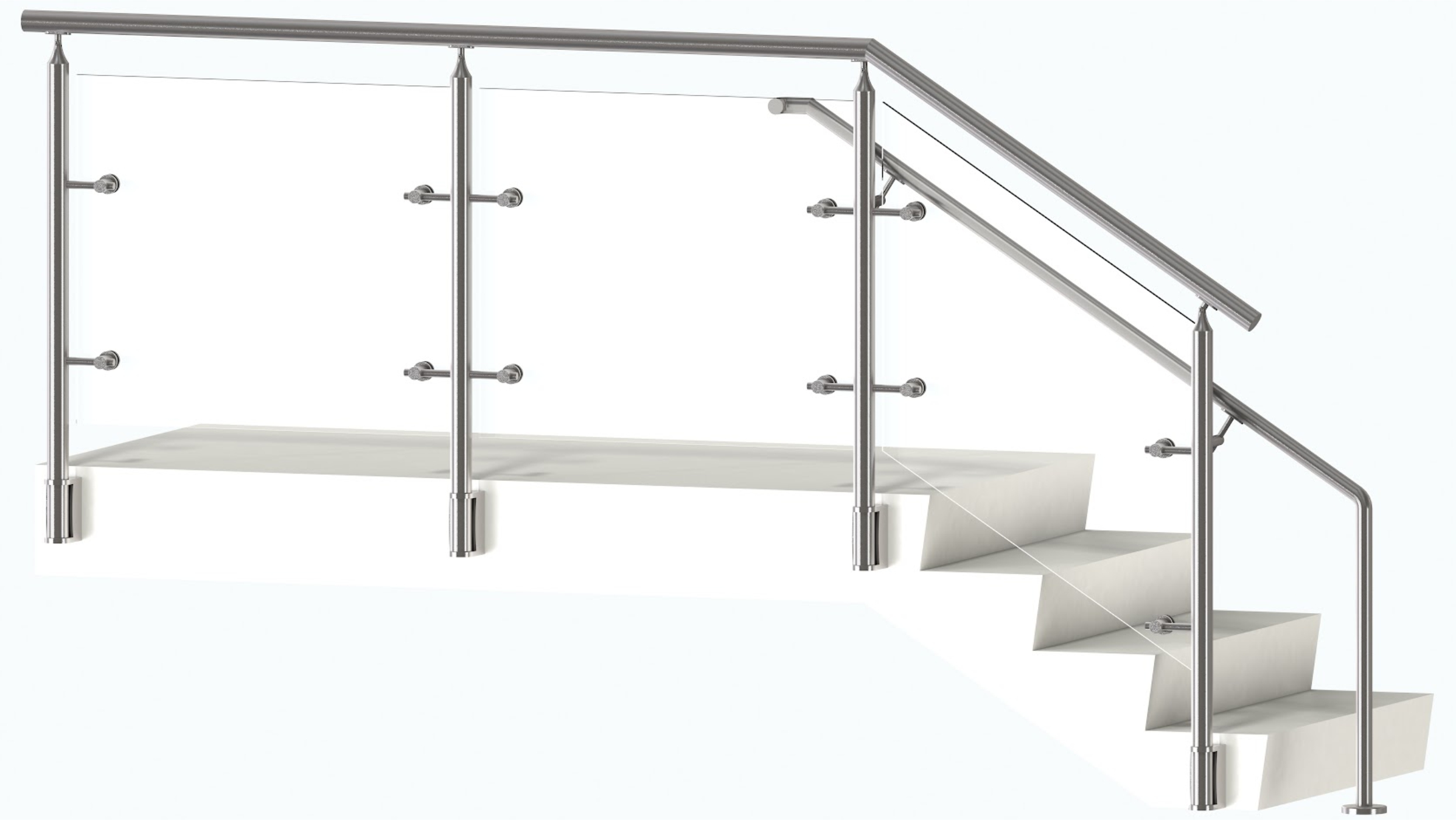

| Mounting Options | Top, Side, Inclined, Core |
| Top Rail Attachments | Round Tube, Round U Cap, Square Tube, Square U Cap |
