Twin Rail
Twin line post with Glass clips

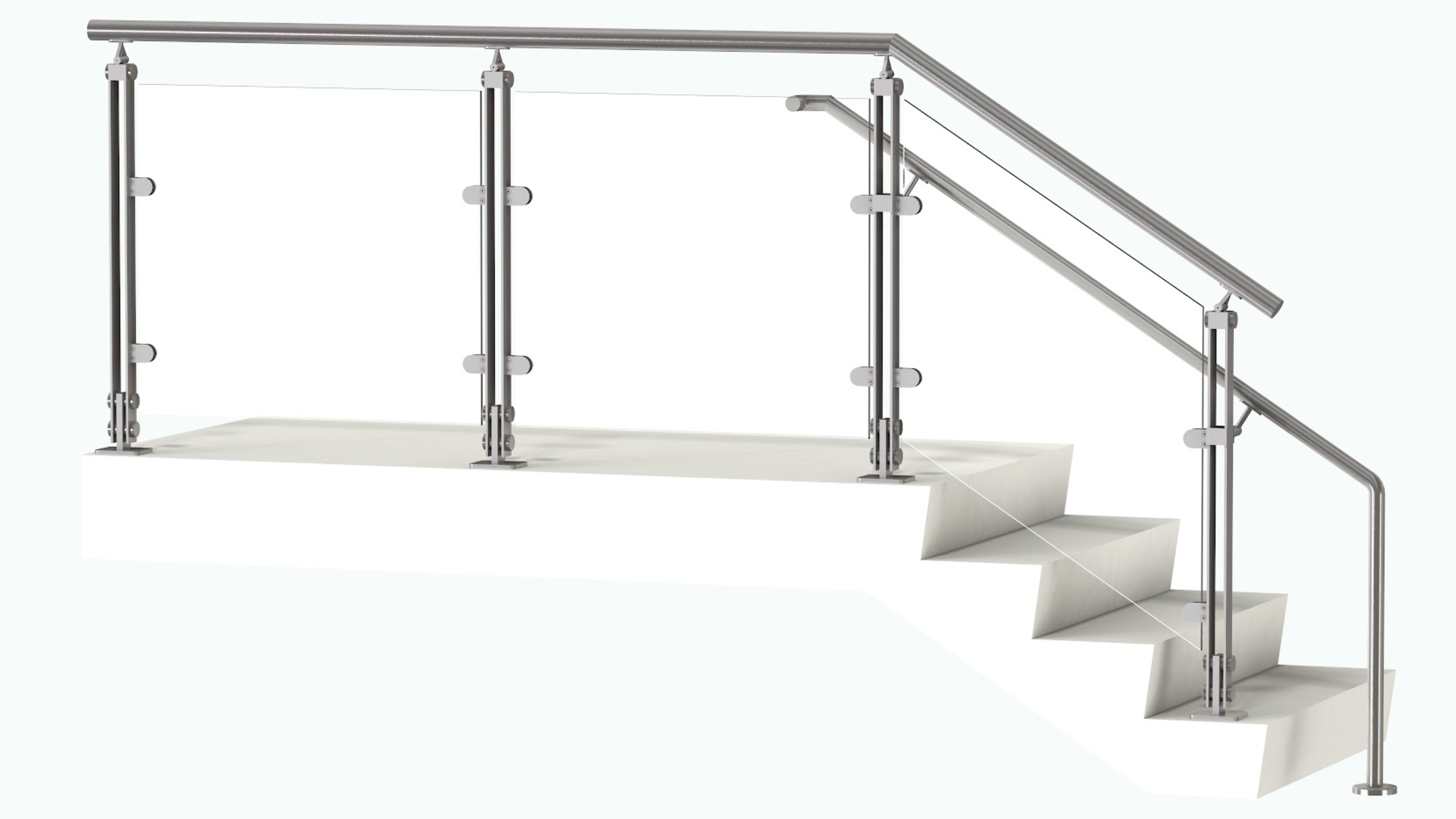

Twin Rail is a design that offers a sleek and modern look for your railing
system. It features a double flat bar post that can be mounted on the top or
the side of the surface and can accommodate various types of infill
options. Whether you choose glass, pickets, bars, or wire mesh, Twin Rail
will enhance the aesthetic and functionality of your space.
This option uses glass clips to hold the glass panels in place, creating a seamless and
transparent view. The glass clips are attached to the double flat bar post, which is
mounted on the top of the surface. This type of installation is suitable for flat surfaces
that can support the weight of the post and the glass.
| TECHNICAL DATA | TYPE/SHAPE | STANDARD SPACING / SIZE IN mm (Inch) |
|---|---|---|
| Post | Double Flat | 1220 mm (4’) On Center - Standard |
| Infill option | Glass with Clips | 10.76 - 12.76 mm (3/8” - 9/16”) laminated glass |
| Top Rail / Hand Rail | Round or Square Tube | Dia. 48.3 mm (1-29/32") / 38.1 mm (1-1/2") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
| Top Rail / Hand Rail (U-tube) | Round or Square U Tube | Dia. 42.4 mm (1-21/32") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
[wp360view product_id = 990650]Additional information
| Infill Option | Glass |
|---|---|
| Model Name | Twin Rail |
| Post Type | Twin line |
| Mounting Options | Top, Side |
| Top Rail Attachments | Round Tube, Round U Cap, Square Tube, Square U Cap |
