Brawny
Square post with Glass clips
Brawny is a design that offers a sturdy and robust look for your railing
system. It features a square post that can be mounted on the top or the side
of the surface and can accommodate various types of infill options.
Whether you choose glass, pickets, bars, or wire mesh, Brawny will provide
strength and durability to your space.

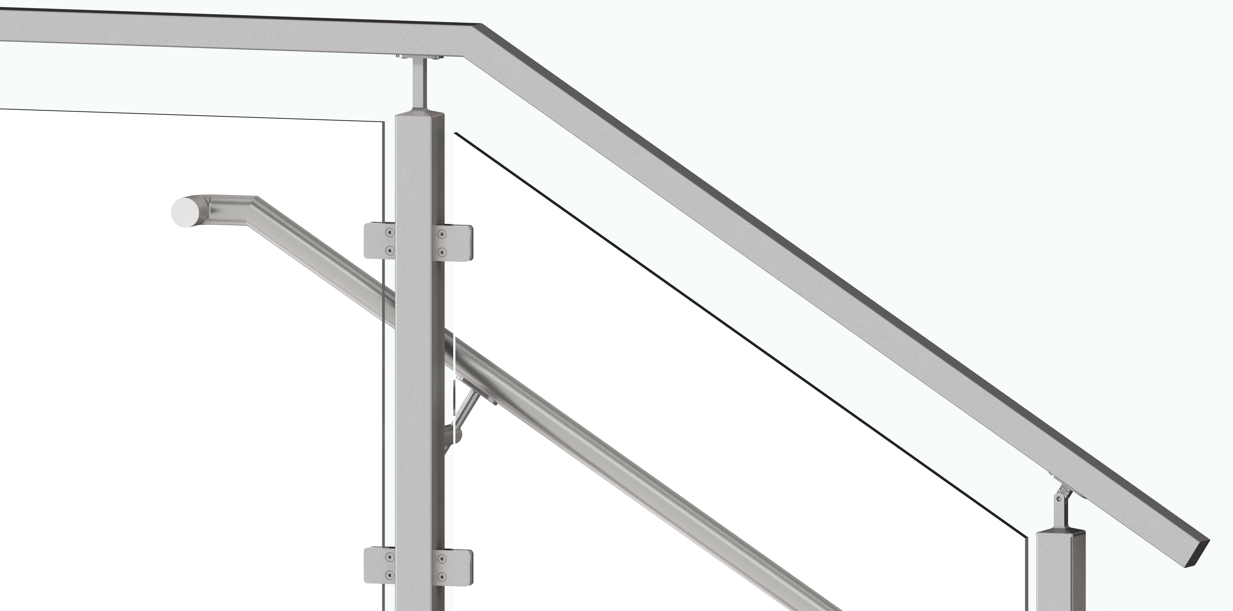

This option uses glass clips to hold the glass panels in place, creating a seamless and
transparent view. The glass clips are attached to the square post, which is mounted on
the top of the surface. This type of installation is suitable for flat surfaces that can support
the weight of the post and the glass.
Our standards include the option for customization or different sizes to suit your needs. Our products are offered in both SS 304 and 316 grades, and you can choose from #4, #6 Satin, or #8 Mirror finishes.
| TECHNICAL DATA | TYPE/SHAPE | STANDARD SPACING / SIZE IN mm (Inch) |
|---|---|---|
| Post | Square | 1220 mm (4’) On Center - Standard |
| Infill option | Glass with Clips | 10.76 - 12.76 mm (3/8” - 9/16”) laminated glass |
| Top Rail / Hand Rail | Round or Square Tube | Dia. 48.3 mm (1-29/32") / 38.1 mm (1-1/2") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
| Top Rail / Hand Rail (U-tube) | Round or Square U Tube | Dia. 42.4 mm (1-21/32") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
Additional information
| Infill Option | Glass |
|---|---|
| Model Name | Brawny |
| Post Type | Square |
| Mounting Options | Top, Side, Inclined, Core |
| Top Rail Attachments | Round Tube, Round U Cap, Square Tube, Square U Cap |
