Brawny
Square post with Glass Spider fittings
Brawny is a design that offers a sturdy and robust look for your railing

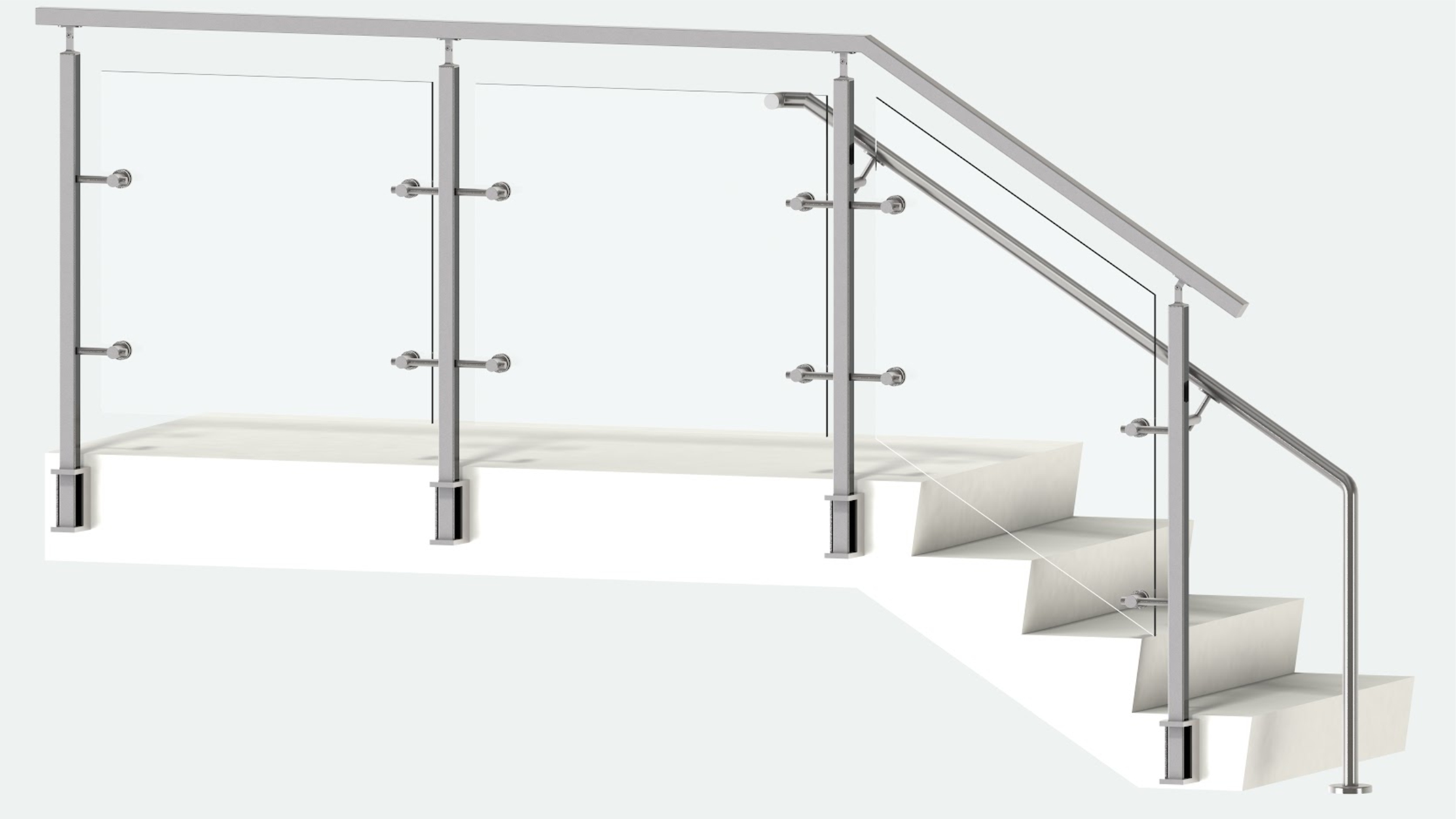

system. It features a square post that can be mounted on the top or the side
of the surface and can accommodate various types of infill options.
Whether you choose glass, pickets, bars, or wire mesh, Brawny will provide
strength and durability to your space.

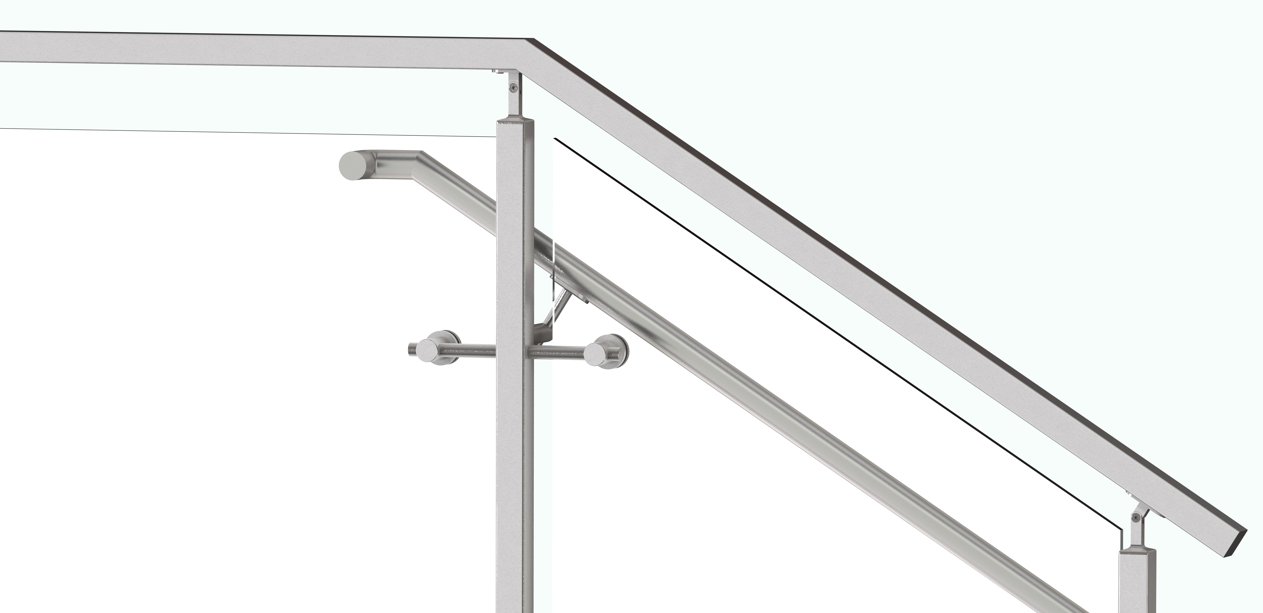

This option uses glass Spider fitting to connect the glass panels to the square post, creating
a stylish and elegant look. The glass Spider fitting are small metal devices that have four
arms that extend from a central point, resembling a spider. The Spider fitting are mounted

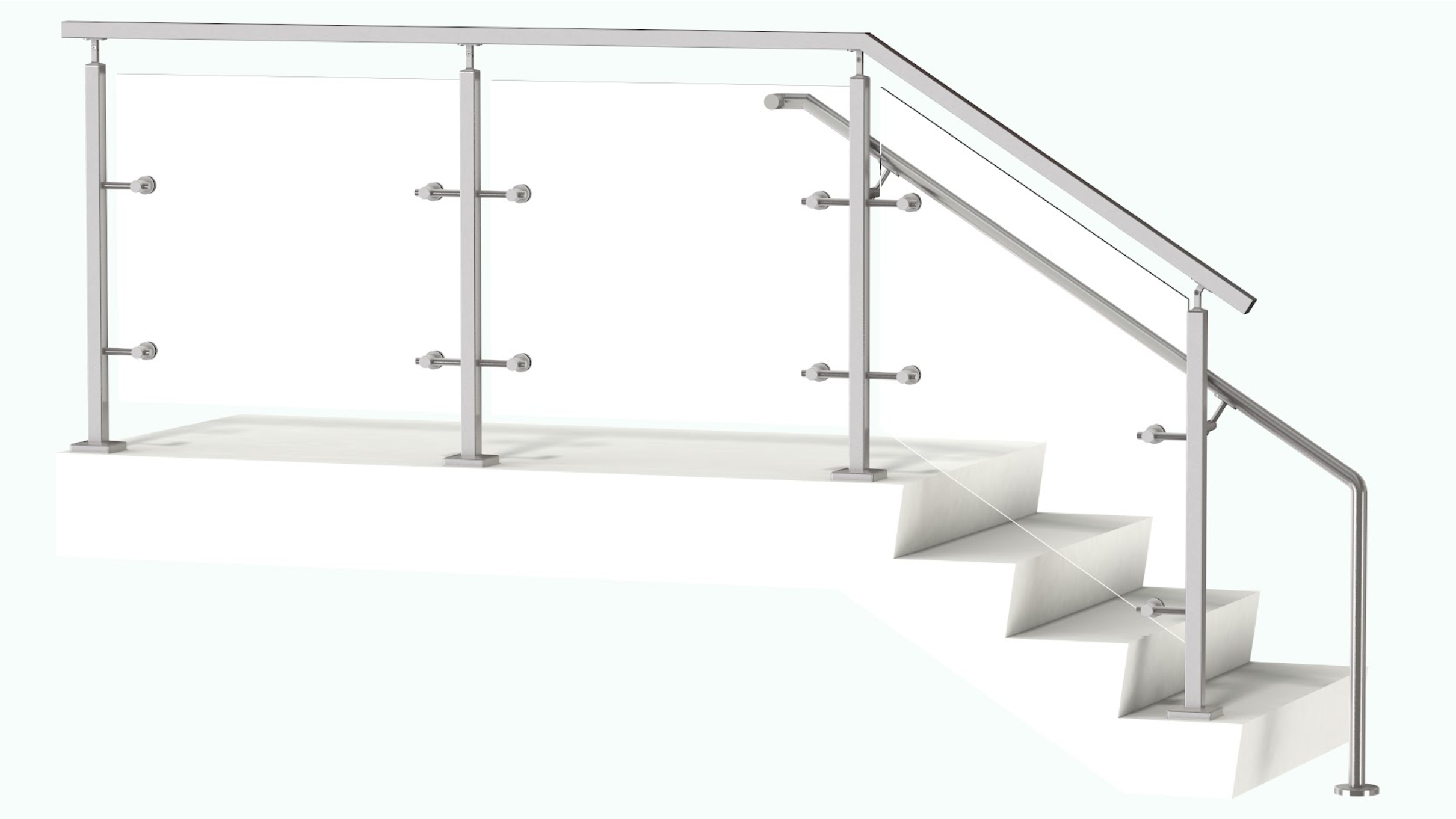

on the top of the surface, along with the square post. This type of installation is suitable for
flat surfaces that can support the weight of the post, the glass, and the Spider fitting.
| TECHNICAL DATA | TYPE/SHAPE | STANDARD SPACING / SIZE IN mm (Inch) |
|---|---|---|
| Post | Square | 1220 mm (4’) On Center - Standard |
| Infill option | Glass with Spider | 10.76 - 12.76 mm (3/8” - 9/16”) laminated glass |
| Top Rail / Hand Rail | Round or Square Tube | Dia. 48.3 mm (1-29/32") / 38.1 mm (1-1/2") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
| Top Rail / Hand Rail (U-tube) | Round or Square U Tube | Dia. 42.4 mm (1-21/32") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
Additional information
| Infill Option | Glass |
|---|---|
| Model Name | Brawny |
| Post Type | Square |
| Mounting Options | Top, Side, Inclined, Core |
| Top Rail Attachments | Round Tube, Round U Cap, Square Tube, Square U Cap |
