Flatron
Flat post with Glass Spider Fittings
Flatron is a design that offers a sleek and modern look for your railing
system. It features a flat post that can be mounted on the top or the side of
the surface and can accommodate various types of infill options. Whether
you choose glass, pickets, bars, or wire mesh, Flatron will add a touch of
elegance and sophistication to your space.

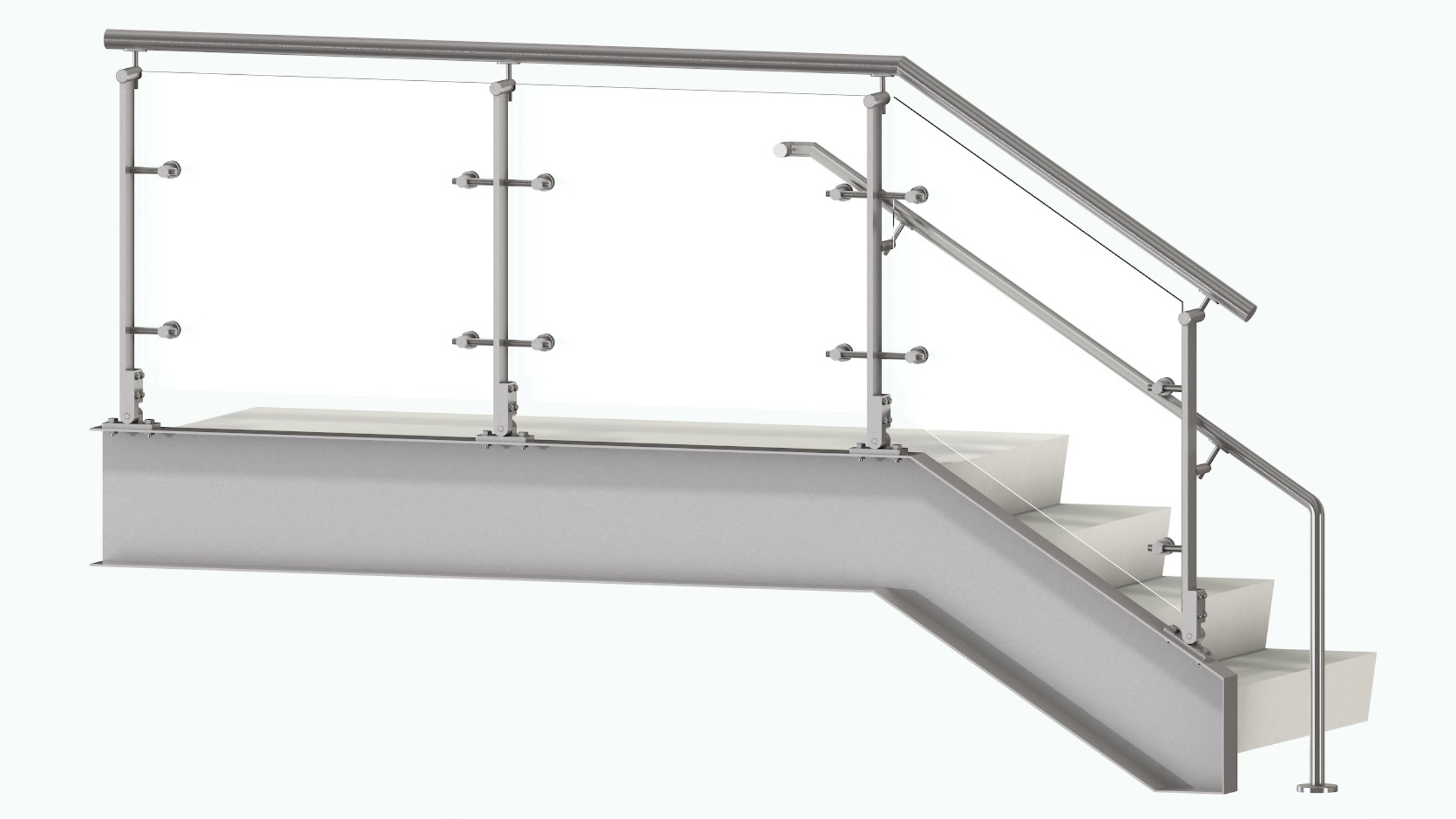

This option uses glass Spider fitting to connect the glass panels to the flat post,
creating a stylish and elegant look. The glass Spider fittings are small metal devices
that have four arms that extend from a central point, resembling a spider. The
Spider fitting are mounted on the top of the surface, along with the flat post. This
type of installation is suitable for flat surfaces that can support the weight of the
post, the glass, and the Spider fitting.
[wp360view product_id = 990782]| TECHNICAL DATA | TYPE/SHAPE | STANDARD SPACING / SIZE IN mm (Inch) |
|---|---|---|
| Post | Rectangular (Flat) | 1220 mm (4’) On Center - Standard |
| Infill option | Glass with Spider | 10.76 - 12.76 mm (3/8” - 9/16”) laminated glass |
| Top Rail / Hand Rail | Round or Square Tube | Dia. 48.3 mm (1-29/32") / 38.1 mm (1-1/2") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
| Top Rail / Hand Rail (U-tube) | Round or Square U Tube | Dia. 42.4 mm (1-21/32") - Standard Sq. 40x40 mm (1-9/16" X 1-9/16") - Standard |
Additional information
| Infill Option | Glass |
|---|---|
| Model Name | Flatron |
| Post Type | Flat |
| Mounting Options | Top, Side, Inclined, Core |
| Top Rail Attachments | Round Tube, Round U Cap, Square Tube, Square U Cap |
